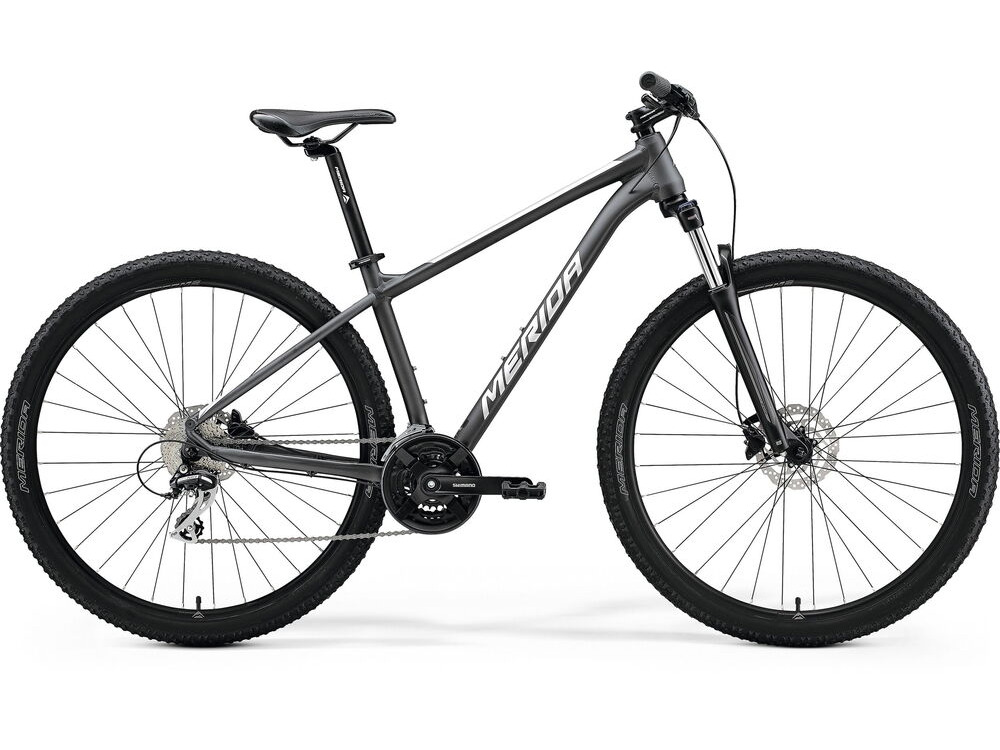

Merida Big Nine 20 2023

Merida Big Nine 20 click to zoom image
Offer £500.00

Click & Collect ONLY
Model Year 2023
Options Medium Black / SIlver
Large Black / SIlver
XL Black / SIlver
XXL Black / SIlver
Frame TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25"
Forks Suntour XCT30 HLO; Coil; 100mm travel; lockout. Max. tyre size: 29" x 2.25"
Rear Derailleur Shimano RD-M360
Front Derailleur Shimano FD-M315-TS
Shifters Shimano ST-EF505
Chainset Shimano FC-M315-2; 36-22 tooth chainset. Crank length: 175mm (M,L,XL,XXL)
Bottom Bracket FSA TH-7420ST-W, Cartridge Bearing
Chain Sunrace M84
Freewheel Sunrace M84
Headset Merida M2345
Stem Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
Handlebars Merida CC; aluminium; 690mm wide; 15mm rise
Front Brake Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear Brake Shimano BR-MT200 hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Brake Levers Shimano ST-EF505
Rims Merida CC; 17mm inner rim width; Aluminium
Front Hub Shimano TX505; 100x9mm; 32 spokes; Center lock
Rear Hub Shimano TX505; 135x9mm; 32 spokes; Center lock
Spokes Black steel
Tyres Merida K1080; 29" x 2.2"; wire bead
Saddle Merida Sport comfort
Seatpost Merida CC; aluminium; 30.9mm diameter; 15mm lay back
Pedals VP Components, VPE-891
Type Hardtail
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
